调教你的Idea

常用配置

1、基本配置

配置UTF-8

显示行号

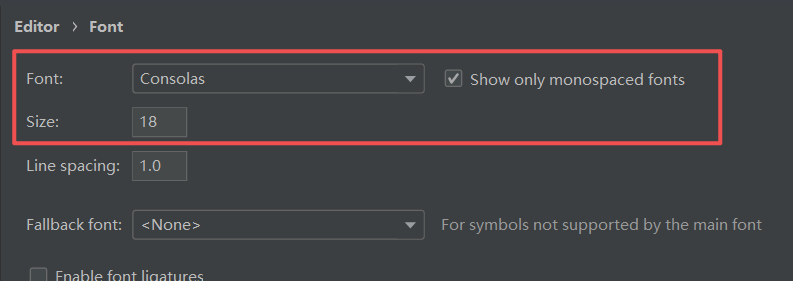

更改字体和字体大小

设置大小写代码提示

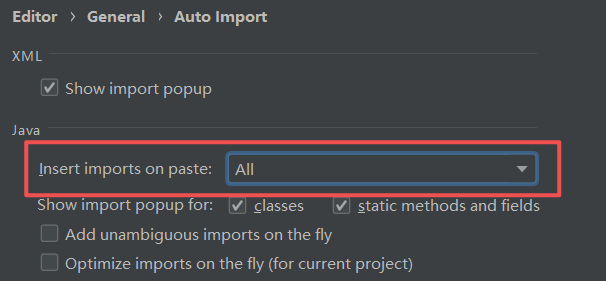

自动导包

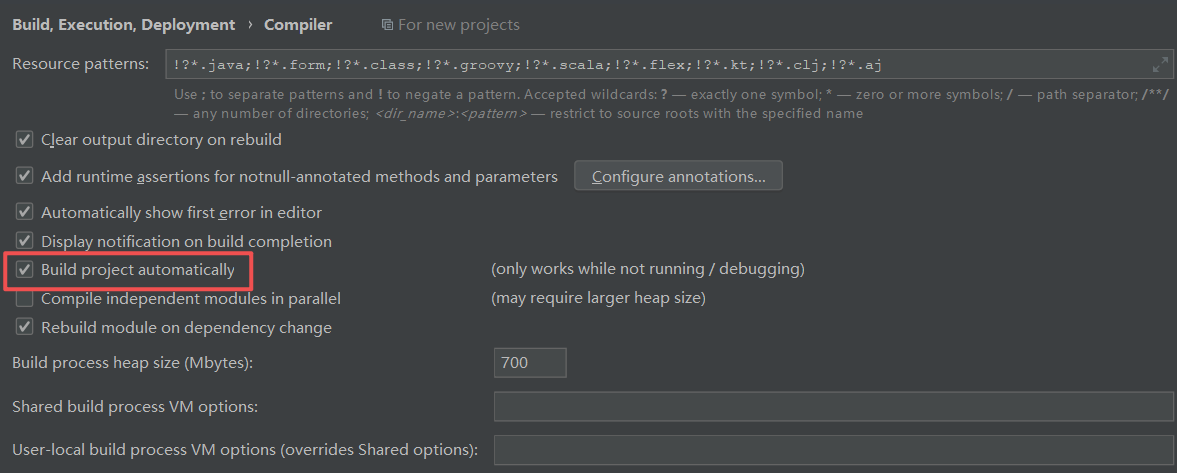

自动编译

main提示main方法

配置bash命令行

关闭idea通知

关闭打开上一次项目

关闭更新

关闭Tab单行展示

Tab按照打开顺序排列

2、主界面配置

显示工具栏

设置idea分配的空间大小

#下面三行的数据可以自行修改 分别为 JVM堆区内存初始内存分配的大小 JVM最大可用内存  代码缓存
-Xms2048m
-Xmx2048m
-XX:ReservedCodeCacheSize=512m

保存当前布局

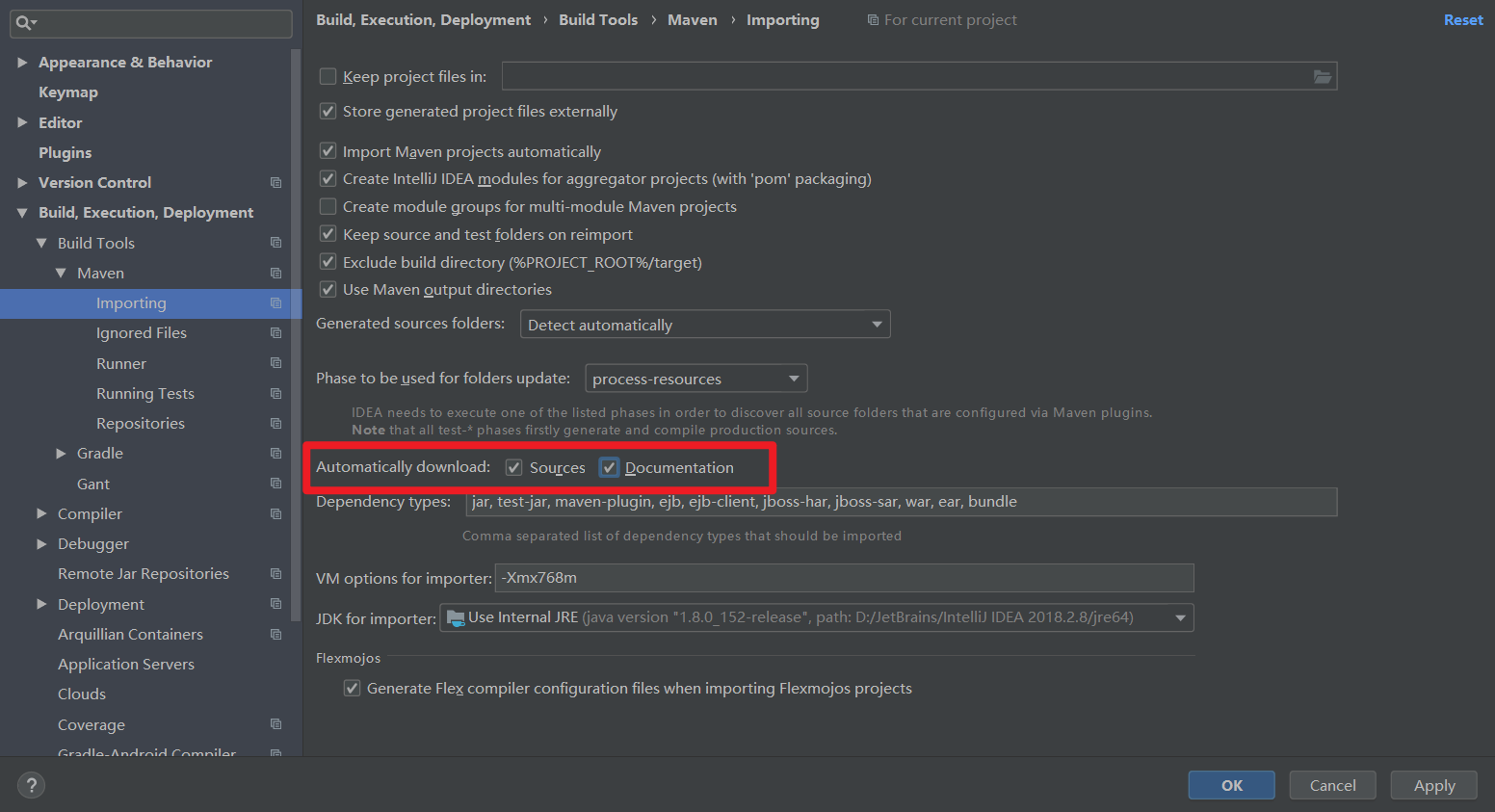

源码自动导入

3、插件安装

Lombok

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

Easy Code

mp-entity

##引入宏定义
$!define

##使用宏定义设置回调（保存位置与文件后缀）
#save("/entity", ".java")

##使用宏定义设置包后缀
#setPackageSuffix("entity")

##使用全局变量实现默认包导入
$!autoImport
import java.io.Serializable;
import lombok.Data;
import lombok.EqualsAndHashCode;
import com.baomidou.mybatisplus.annotation.TableName;
import com.baomidou.mybatisplus.extension.activerecord.Model;
import com.baomidou.mybatisplus.annotation.TableId;


/**
 * @author $!author
 * @since $!time.currTime()
 */
@Data
@TableName("$!{tool.hump2Underline($tableInfo.name)}")
@EqualsAndHashCode(callSuper = true)
public class $!{tableInfo.name} extends Model<${tableInfo.name}> implements Serializable {

    private static final long serialVersionUID = $!tool.serial();


    ## 主键
    #foreach($column in $tableInfo.pkColumn)
    #if(${column.comment})/**
        * ${column.comment}
        */#end

        @TableId
        private $!{tool.getClsNameByFullName($column.type)} $!{column.name};
    #end

    ##非主键
    #foreach($column in $tableInfo.otherColumn)
    #if(${column.comment})/**
        * ${column.comment}
        */#end

        private $!{tool.getClsNameByFullName($column.type)} $!{column.name};
    #end
}

mp-mapper

##定义初始变量
#set($tableName = $tool.append($tableInfo.name, "Mapper"))
##设置回调
$!callback.setFileName($tool.append($tableName, ".java"))
$!callback.setSavePath($tool.append($tableInfo.savePath, "/mapper"))


#if($tableInfo.savePackageName)package $!{tableInfo.savePackageName}.#{end}mapper;

import $!{tableInfo.savePackageName}.entity.$!{tableInfo.name};
import org.apache.ibatis.annotations.Mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;

/**
 * @author $!author
 * @since $!time.currTime()
 */
@Mapper
public interface $!{tableName} extends BaseMapper<$!{tableInfo.name}> {

}

mp-service

##定义初始变量
#set($tableName = $tool.append($tableInfo.name, "Service"))
##设置回调
$!callback.setFileName($tool.append($tableName, ".java"))
$!callback.setSavePath($tool.append($tableInfo.savePath, "/service"))



#if($tableInfo.savePackageName)package $!{tableInfo.savePackageName}.#{end}service;

import $!{tableInfo.savePackageName}.entity.$!{tableInfo.name};
import com.baomidou.mybatisplus.extension.service.IService;

/**
 * @author $!author
 * @since $!time.currTime()
 */
public interface $!{tableName} extends IService<$!{tableInfo.name}> {

}

mp-service-impl

##定义初始变量
#set($tableName = $tool.append($tableInfo.name, "ServiceImpl"))
##设置回调
$!callback.setFileName($tool.append($tableName, ".java"))
$!callback.setSavePath($tool.append($tableInfo.savePath, "/service/impl"))


#if($tableInfo.savePackageName)package $!{tableInfo.savePackageName}.#{end}service.impl;

import $!{tableInfo.savePackageName}.entity.$!{tableInfo.name};
import $!{tableInfo.savePackageName}.mapper.$!{tableInfo.name}Mapper;
import $!{tableInfo.savePackageName}.service.$!{tableInfo.name}Service;

import org.springframework.stereotype.Service;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;

/**
 * @author $!author
 * @since $!time.currTime()
 */
@Service
public class $!{tableName} extends ServiceImpl<$!{tableInfo.name}Mapper, $!{tableInfo.name}> implements $!{tableInfo.name}Service {

}

Mybatis Log

下载链接密码:fopc

Free Mybatis Plugin

下载链接密码:6a7q

4、快捷键调整

跳转实现类

代码块移动

全局搜索

查找类

查看当前类的实现

前进/返回

5、集成maven

下载安装maven 并配置环境变量

Path
;%M2_HOME%\bin;


M2_HOME
D:\Eclipse EE\apache-maven-3.5.4

maven配置文件配置

#配置本地仓库文件夹
<localRepository>F:\Maven_respo</localRepository>


#配置阿里云镜像
<mirrors>
    <mirror>
        <id>nexus-aliyun</id>
        <mirrorOf>central</mirrorOf>
        <name>Nexus aliyun</name>
        <url>http://maven.aliyun.com/nexus/content/groups/public</url>
    </mirror>
<mirrors>


#配置java版本
<profile>
<id>jdk-1.8</id>
<activation>
	<activeByDefault>true</activeByDefault>
	<jdk>1.8</jdk>
</activation>
<properties>
	<maven.compiler.source>1.8</maven.compiler.source>
	<maven.compiler.target>1.8</maven.compiler.target>
	<maven.compiler.compilerVersion>1.8</maven.compiler.compilerVersion>
</properties>
</profile>

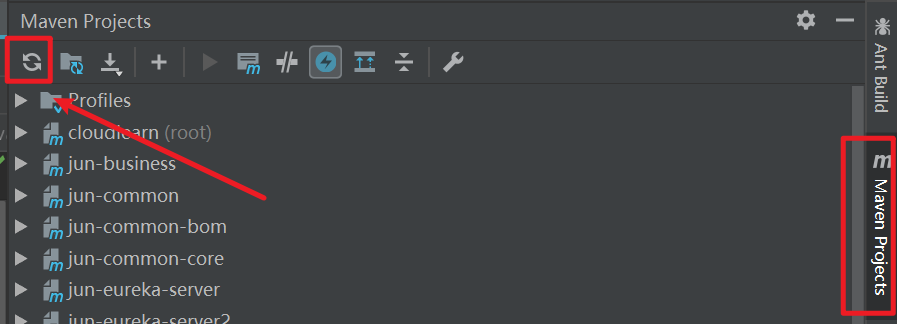

idea集成maven

6、集成tomcat

点击工具栏

点击 + 号选择tomcat Server 再选择Local 如果找不到Tomcat Server 则在33 items more里面

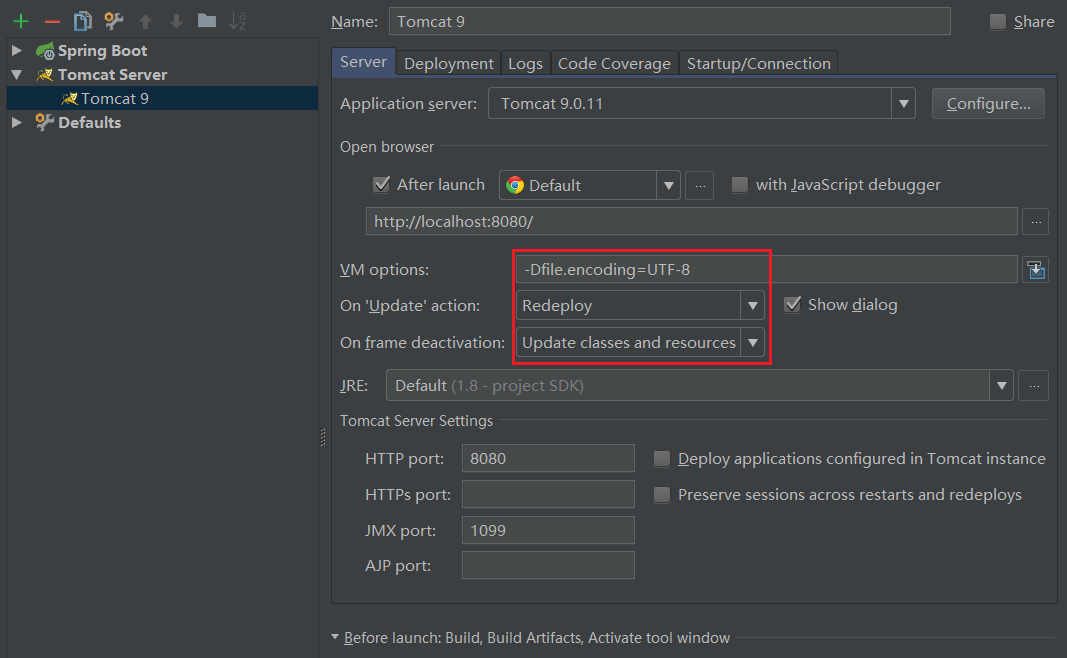

设置Tomcat

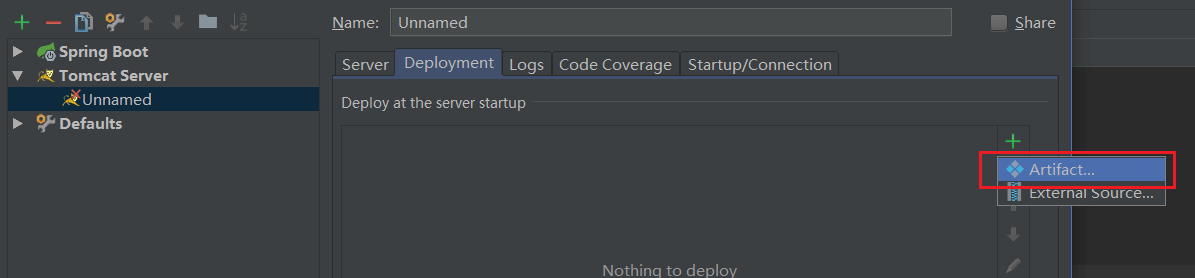

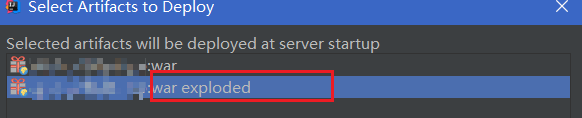

将项目添加到Tomcat

常见问题

启动类灰色

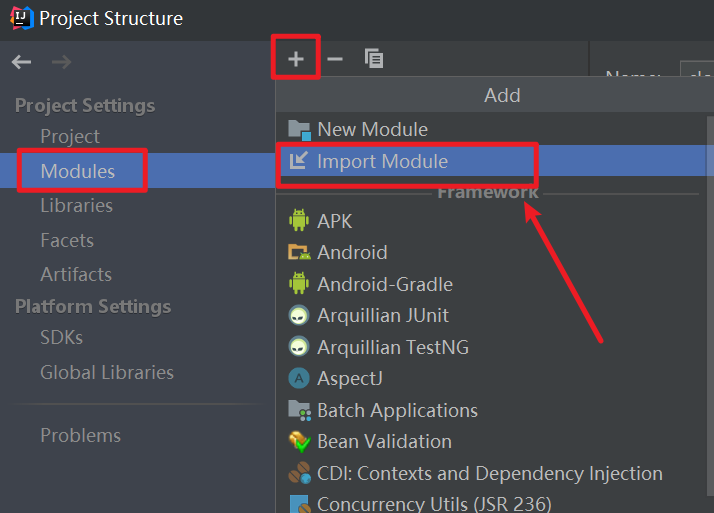

Module灰色

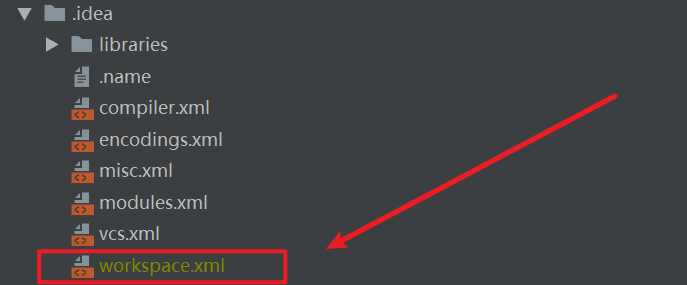

开启Run Dashboard

<component name="RunDashboard">
    <option name="configurationTypes">
      <set>
        <option value="SpringBootApplicationConfigurationType" />
      </set>
    </option>
    .......
  </component>

配置Logback

logback-spring.xml

<?xml version="1.0" encoding="UTF-8"?>

<configuration debug="false" scan="false">
	<property name="log.path" value="logs/${project.artifactId}"/>
	<!-- 彩色日志格式 -->
	<property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}"/>

	<!-- 彩色日志依赖的渲染类 -->
	<conversionRule conversionWord="clr" converterClass="org.springframework.boot.logging.logback.ColorConverter"/>
	<conversionRule conversionWord="wex" converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter"/>
	<conversionRule conversionWord="wEx" converterClass="org.springframework.boot.logging.logback.ExtendedWhitespaceThrowableProxyConverter"/>

	<!-- Console log output -->
	<appender name="console" class="ch.qos.logback.core.ConsoleAppender">
		<encoder>
			<pattern>${CONSOLE_LOG_PATTERN}</pattern>
		</encoder>
	</appender>

	<!-- Log file debug output -->
	<appender name="debug" class="ch.qos.logback.core.rolling.RollingFileAppender">
		<file>${log.path}/debug.log</file>
		<rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
			<fileNamePattern>${log.path}/%d{yyyy-MM, aux}/debug.%d{yyyy-MM-dd}.%i.log.gz</fileNamePattern>
			<maxFileSize>50MB</maxFileSize>
			<maxHistory>30</maxHistory>
		</rollingPolicy>
		<encoder>
			<pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n</pattern>
		</encoder>
	</appender>

	<!-- Log file error output -->
	<appender name="error" class="ch.qos.logback.core.rolling.RollingFileAppender">
		<file>${log.path}/error.log</file>
		<rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
			<fileNamePattern>${log.path}/%d{yyyy-MM}/error.%d{yyyy-MM-dd}.%i.log.gz</fileNamePattern>
			<maxFileSize>50MB</maxFileSize>
			<maxHistory>30</maxHistory>
		</rollingPolicy>
		<encoder>
			<pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n</pattern>
		</encoder>
		<filter class="ch.qos.logback.classic.filter.ThresholdFilter">
			<level>ERROR</level>
		</filter>
	</appender>


	<logger name="com.test.mapper" level="DEBUG">
		<appender-ref ref="debug"/>
	</logger>

	<!-- Level: FATAL 0  ERROR 3  WARN 4  INFO 6  DEBUG 7 -->
	<root level="INFO">
		<appender-ref ref="console"/>
		<appender-ref ref="debug"/>
	</root>
</configuration>

下载密码:87zv

创建项目

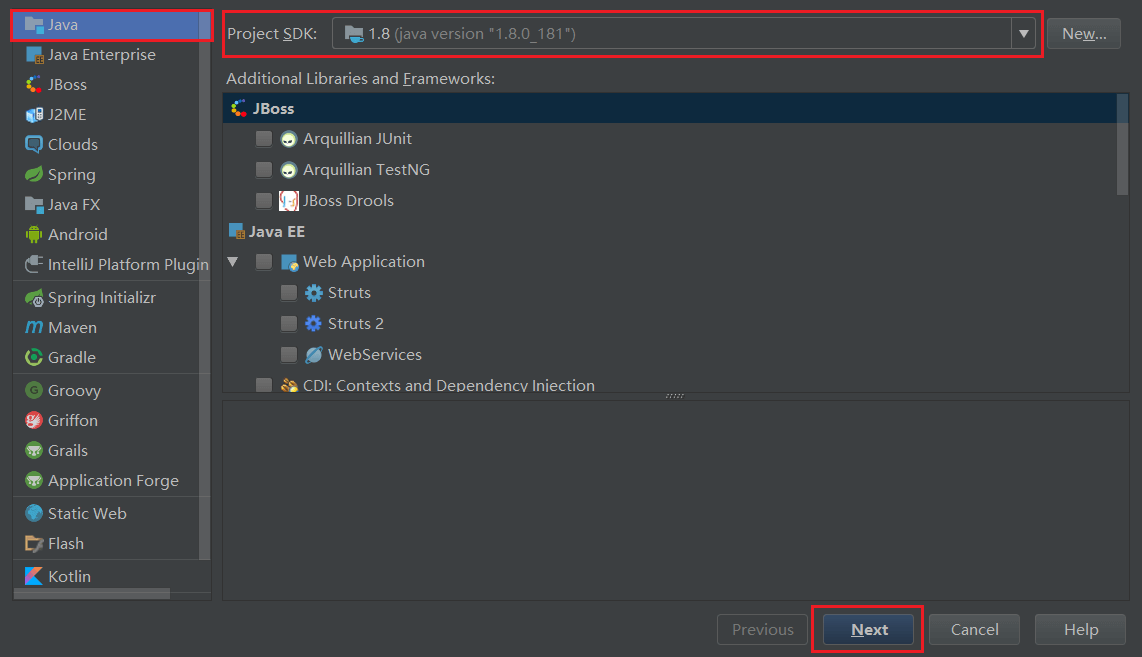

1、创建普通java项目

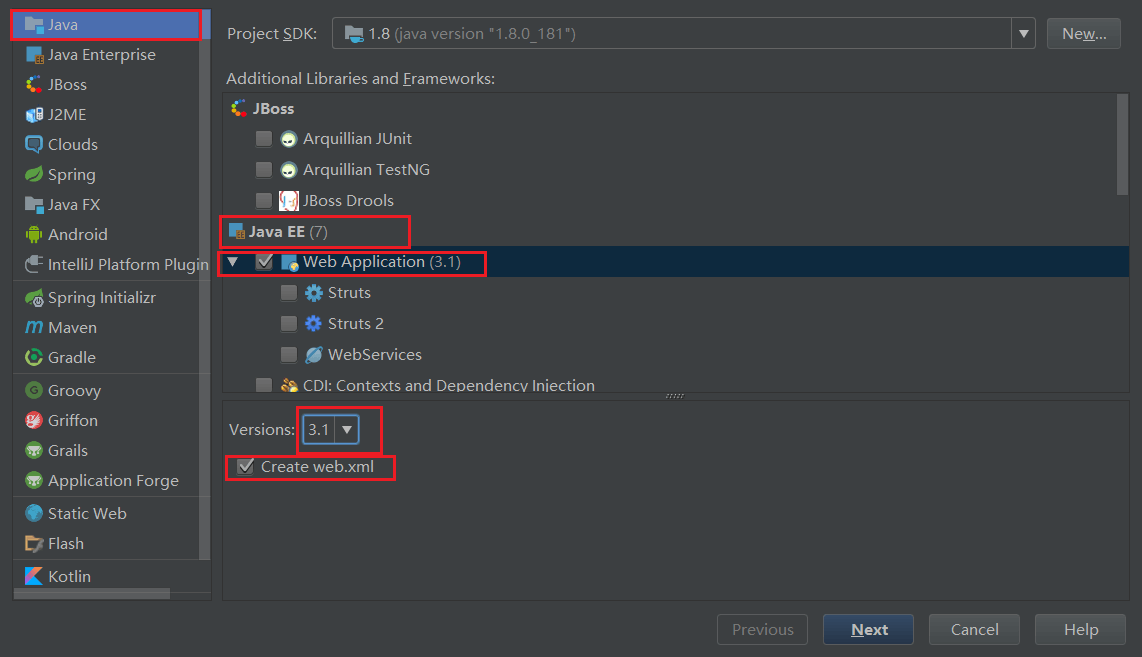

2、创建javaweb项目

3、创建maven项目

修改目录结构

修改servlet版本为3.1 (web.xml)

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">



</web-app>

修改junit版本为4.11(pom.xml 3.x不支持注解式测试)

<dependency>
  <groupId>junit</groupId>
  <artifactId>junit</artifactId>
  <version>4.11</version>
  <scope>test</scope>
</dependency>

补全依赖以ssm框架为例(pom.xml)

<!-- 日志 -->
<dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-api</artifactId>
  <version>1.7.12</version>
</dependency>

<dependency>
  <groupId>ch.qos.logback</groupId>
  <artifactId>logback-core</artifactId>
  <version>1.1.1</version>
</dependency>

<dependency>
  <groupId>ch.qos.logback</groupId>
  <artifactId>logback-classic</artifactId>
  <version>1.1.1</version>
</dependency>

<!-- 数据库 -->
<dependency>
  <groupId>mysql</groupId>
  <artifactId>mysql-connector-java</artifactId>
  <version>8.0.11</version>
</dependency>
<dependency>
  <groupId>c3p0</groupId>
  <artifactId>c3p0</artifactId>
  <version>0.9.1.2</version>
</dependency>

<!-- dao框架依赖:mybatis -->
<dependency>
  <groupId>org.mybatis</groupId>
  <artifactId>mybatis</artifactId>
  <version>3.3.0</version>
</dependency>

<dependency>
  <groupId> org.mybatis</groupId>
  <artifactId>mybatis-spring</artifactId>
  <version>1.2.3</version>
</dependency>


<!-- servlet web 相关依赖 -->
<dependency>
  <groupId>taglibs</groupId>
  <artifactId>standard</artifactId>
  <version>1.1.2</version>
</dependency>

<dependency>
  <groupId>jstl</groupId>
  <artifactId>jstl</artifactId>
  <version>1.2</version>
</dependency>

<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-databind</artifactId>
  <version>2.5.4</version>
</dependency>

<dependency>
  <groupId>javax.servlet</groupId>
  <artifactId>javax.servlet-api</artifactId>
  <version>3.1.0</version>
</dependency>

<!-- spring 依赖-->
<!-- spring 核心依赖-->
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-core</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-beans</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-context</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

<!-- spring dao层依赖 -->
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-jdbc</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-tx</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

<!-- spring web相关的依赖 -->
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-web</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-webmvc</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

<!-- spring test相关依赖 -->
<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-test</artifactId>
  <version>4.1.7.RELEASE</version>
</dependency>

常用快捷键

Ctrl + Alt + V 快速生成返回值

Alt + Insert Set/Get 重写 toString Constructor ……

Ctrl + Z / Ctrl + Shift + Z 撤销 / 前进

Shift + Ctrl + ↑ / Shift + Ctrl +↓ 代码块向上/向下移动

Ctrl + Y 删除一行代码

Ctrl + N 查找类

Shift + Ctrl + N 查找文件

Ctrl + P 方法参数提示

Ctrl + Space 代码提示

Ctrl + Alt + O 优化导入类和包

Ctrl + Alt + U 向上查看继承结构

Ctrl + H 打开查看类控制版面
